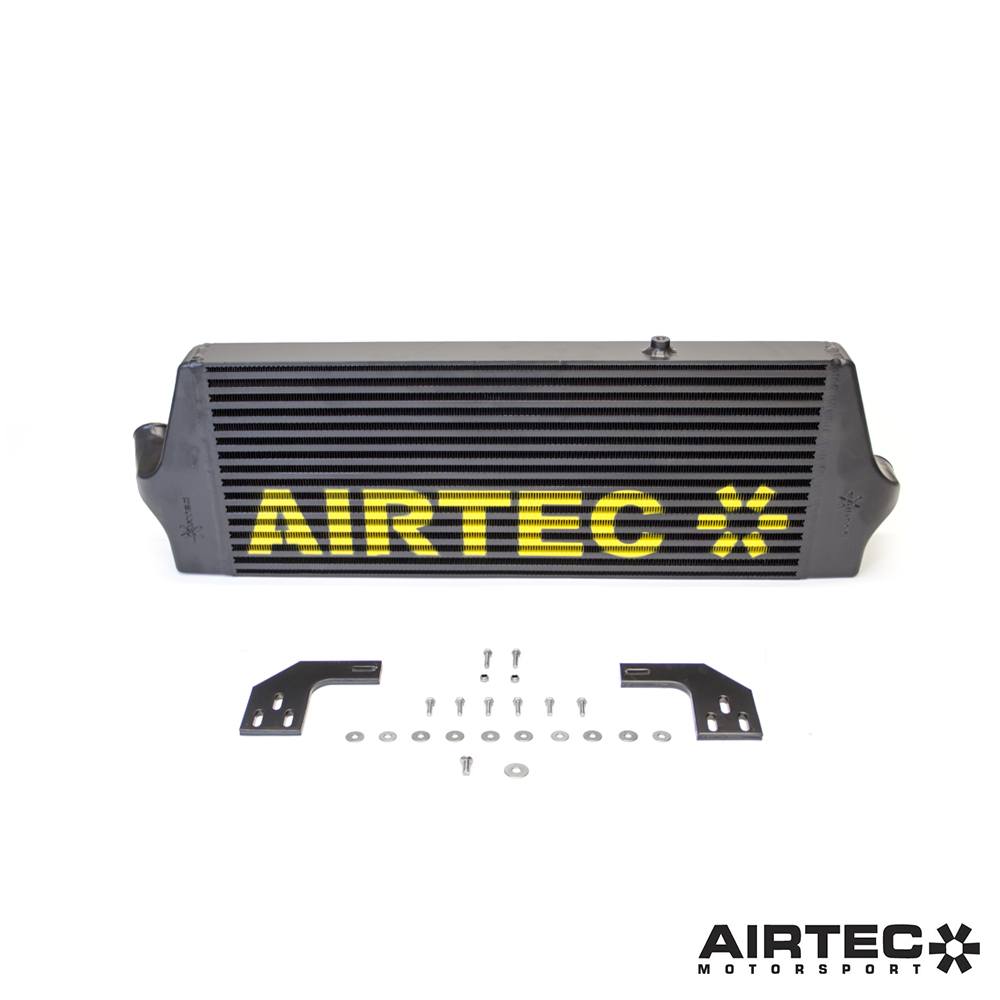

AIRTEC Stage 1 Gen 3 Intercooler Upgrade for Mk2 Focus ST

Technical Data

As part of our expanding Focus ST product range, AIRTEC Motorsport is proud to launch our Stage 1 Gen 3 intercooler upgrade suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed an even better version of our first ST intercooler that we originally released back in 2005. The Generation 3 features a 60mm bar and plate core, smoother cast end tanks for better flow and improved strength.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a 60mm core that’s twice as high and almost 100mm longer than the standard item. This offers a massive increase in overall capacity in comparison to the original intercooler, as well as a 100% increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow end tanks ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Comes complete with all fixtures and fittings.

DYNO TESTED
Torque of the Devil rolling road test results – 31/01/2009

Standard intercooler
Power: 275bhp
Torque: 350lb ft
Inlet Temperature: 144 degrees
Outlet Temperature: 66 degrees

AIRTEC Motorsport Gen-3 intercooler
Power: 296.4bhp
Torque: 390lb ft
Inlet Temperature: 148 degrees
Outlet Temperature: 30 degrees

Features:

• Huge, high-flow bare and plate 60mm core
• Smooth flow end tanks for increased flow
• AIRTEC Motorsport logo brackets
• Increased power and torque figures
• Pro-Series black powder coated finish
• Strongest intercooler available, backed up by our 3-year warranty

Registered Design Right number: 6044467

AIRTEC part number: ATINTFO13
